SCP Range
Description
The SCP range of self-contained hydraulic pullers offers a choice of 3 models, each with integral manually operated hydraulic pump and multi-position operating handle. The completely sealed hydraulic system of the SCP pullers enables use of the tool in any position and all models are easy to operate and provide an efficient solution for many pulling applications.
-
- Capacities from 8 to 26 tonnes
- Sealed hydraulic system
- Operates in any position
- Available in a choice of 2-way or 3-jaw configurations (see Note)
- Integrated hydraulic cylinder, pump and puller assembly for easy operation
- Ergonomic 360° rotating handle for easy positioning
- Incorporates safety valve to minimise the risk of puller overload
- Spring-loaded centre point for easy centering of the puller to the shaft
- Supplied complete with piston rod extension piece and storage case
| Model Number | Capacity tonnes | Type of Puller | Hydraulic Stroke mm | Piston Ext. mm | Weight kg |
|---|---|---|---|---|---|
| SCP103 | 8 | 2 & 3-way jaw | 82 | 50 | 11.6 |
| SCP203 | 17 | 2 & 3-way jaw | 82 | 100 | 23.7 |
| SCP303 | 26 | 2 & 3-way jaw | 110 | 150 | 50 |
All models are supplied with a combination crosshead. This combination crosshead can be used as a 2-jaw puller when the legs are arranged at 180Ëš and as a 3-jaw puller when the legs are arranged at 120Ëš.

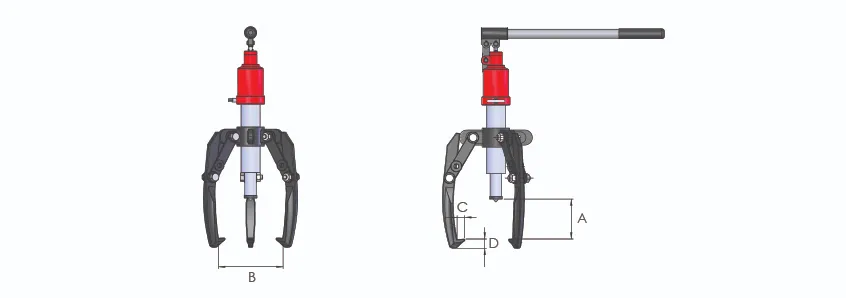

| Model Number | Dimensions in mm | ||||
|---|---|---|---|---|---|
| A | B min | B max recommended | C | D | |
| SCP103 | 195 | 30 | 250 | 22 | 6 |
| SCP203 | 275 | 50 | 360 | 29 | 10 |
| SCP303 | 405 | 100 | 540 | 38 | 36 |
