AHP-BTU Range
AHP-BTU Range - Image 2

AHP-BTU Range

( There are no reviews yet. )

Categories: , , Brand:

Description

The Hi-Force AHP-BTU range of air driven hydraulic pumps is compatible for use with Hi-Force STS, SBT and STU bolt tensioners as well as HTN hydraulic nuts. The pump unit is easy to operate and is supplied complete with a glycerine filled vibra-gauge and quick release outlet coupling. The complete system, including an air inlet filter, regulator and lubricator unit is fitted in a robust stainless steel frame.

  • Ultra-high performance
  • Operates from standard 7 bar air supply
  • Working pressure 1500 bar
Model Number Usable Oil Capacity litres Oil Flow Per Stroke cm3 Outlet Coupler Air consumption Weight kg
AHP275BTU 7.5 1.6 STFC4 28 scfm (0.79 m3/min) 20
AHP2-237BTU 7.5 6.1 STFC4 56 scfm (0.79 m3/min) 24

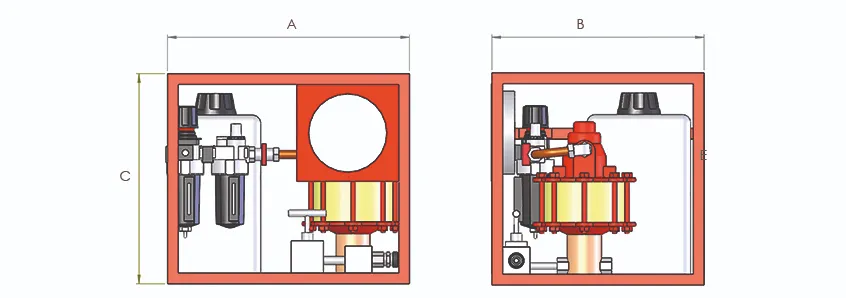

Model Number Dimensions in mm
A B C
AHP275BTU 450 395 395
AHP2-237BTU 450 390 465
