Controlled Manifold Assemblies
Description
Hi-Force controlled manifold units are designed specifically to allow easy control of the direction of flow of the hydraulic fluid, within a single acting or double acting system. These controlled manifold units are mounted in a sturdy framework and are available as 2-outlet or 4-outlet options and are supplied with pressure gauges, reading 0-700 bar, fitted to each outlet port. All models are fitted with quick connect couplings on all inlet and outlet ports, including the 2-Way and 4-Way open manifold return flow lines on double acting versions.
- Working pressure 700 bar
- Up to 4 outlets with individual control on each
- Designed for single or double acting systems

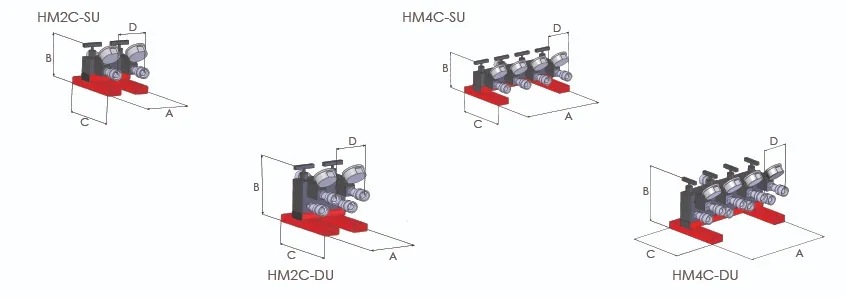

| Model Number | Type | Weight kg | Dimensions in mm | |||
|---|---|---|---|---|---|---|
| A | B | C | D | |||
| HM2C-SU | 2-Way controlled manifold unit, suitable for single acting systems | 2.0 | 150 | 148 | 228 | 100 |
| HM2C-DU | 2-Way controlled manifold unit, suitable for double acting systems | 3.0 | 150 | 198 | 228 | 100 |
| HM4C-SU | 4-Way controlled manifold unit, suitable for single acting systems | 3.5 | 350 | 148 | 228 | 100 |
| HM4C-DU | 4-Way controlled manifold unit, suitable for double acting systems | 6.0 | 350 | 198 | 228 | 100 |
