Cylinder Saddles and Piston Rod

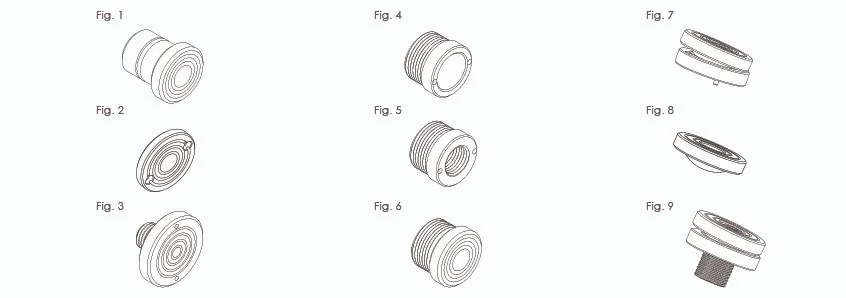

| Cylinder Range | Standard Saddle | Optional Saddle | Piston Rod Thread |
|---|
| Model Number | Figure | Model Number | Figure | A mm | B mm | C mm | D mm | Figure |
|---|
| HAS Cylinder Range |
| HAS – 30T | HA30 | 2 | HAT30 | 7 | 50 | 10 | – | – | 10 |
| HAS – 50T | HA50 | 2 | HAT50 | 7 | 70 | 11 | – | – | 10 |
| HAS – 100T | HA100 | 2 | HAT100 | 7 | 100 | 12 | – | – | 10 |
| HDA Cylinder Range |
| HDA – 25T | HD25 | 3 | HD25T | 9 | 45 | 9 | 35 | 1”-12UNF | 11 |
| HDA – 50T | HD50 | 3 | HD50T | 9 | 70 | 11 | 45 | 1”-12UNF | 11 |
| HDA – 100T | HD100 | 3 | HD100T | 9 | 100 | 12 | 55 | 1¾”-12UNF | 11 |
| HDA – 150T | HD200 | 3 | HD200T | 9 | 100 | 12 | 52 | 3”-16UN | 11 |
| HDA – 200T | HD200 | 3 | HD200T | 9 | 110 | 12 | 70 | 2½”-12UN | 11 |
| HDA – 300T | HD300T | 7 | HD300 | 2 | 150 | 25 | – | – | – |
| HDA – 400T | HD400T | 7 | HD400 | 2 | 180 | 25 | – | – | – |
| HDA – 500T | HD500T | 7 | HD500 | 2 | 180 | 25 | – | – | – |
| HDA – 800T | TS800 | 8 | – | – | 180 | – | 51 | M24X3 | 14 |
| HDA – 1000T | TS1000 | 8 | – | – | 180 | – | 51 | M24X3 | 14 |
| HFA Cylinder Range |
| HFA – 30T | HAT30 | 7 | HA30 | 2 | 50 | 10 | – | – | 10 |
| HFA – 50T | HAT50 | 7 | HA50 | 2 | 70 | 11 | – | – | 10 |
| HFA – 100T | HAT100 | 7 | HA100 | 2 | 100 | 12 | – | – | 10 |
| HFG Cylinder Range |
| HFG – 50T | TS50 | 8 | – | – | 31 | – | 15 | M8x1.25 | 14 |
| HFG – 100T | TS100 | 8 | – | – | 60 | – | 18 | M12x1.75 | 14 |
| HFG – 150T | TS150 | 8 | – | – | 60 | – | 18 | M12x1.75 | 14 |
| HFG – 200T | TS200 | 8 | – | – | 60 | – | 18 | M12x1.75 | 14 |
| HFG – 250T | TS200 | 8 | – | – | 70 | – | 16 | M12x1.75 | 14 |
| HFG – 300T | TS300 | 8 | – | – | 70 | – | 16 | M10x1.5 | 14 |
| HFG – 400T | TS400 | 8 | – | – | 125 | – | 17 | M12x1.75 | 14 |
| HFG – 500T | TS500 | 8 | – | – | 125 | – | 17 | M12x1.75 | 14 |
| HFG – 800T | TS800 | 8 | – | – | 175 | – | 50 | M24X3 | 14 |
| HFG – 1000T | TS1000 | 8 | – | – | 175 | – | 51 | M24X3 | 14 |
| HFL Cylinder Range |
| HFL – 50T | TS50 | 8 | – | – | 31 | – | 15 | M8x1.25 | 14 |
| HFL – 100T | TS100 | 8 | – | – | 60 | – | 18 | M12x1.75 | 14 |
| HFL – 150T | TS150 | 8 | – | – | 120 | – | 18 | M12x1.75 | 14 |
| HFL – 250T | TS251 | 8 | – | – | 140 | – | 40 | M10x1.5 | 14 |
| HFL – 400T | TS401 | 8 | – | – | 180 | – | 40 | M12x1.75 | 14 |
| HFL – 500T | TS501 | 8 | – | – | 200 | – | 40 | M12x1.75 | 14 |
| HGG Cylinder Range |
| HGG – 150T | TS150 | 8 | – | – | 18 | – | 60 | M12x1.75 | 14 |
| HGG – 200T | TS201 | 8 | – | – | 18 | – | 124.5 | M12x1.75 | 14 |
| HGG – 300T | TS301 | 8 | – | – | 21 | – | 95 | M12x1.75 | 14 |
| HHA Cylinder Range |
| HHA – 18T | HA18 | 4 | HA18T | 5 | – | – | 28 | M35x1.5 | 12 |
| HHA – 37T | HA37 | 4 | HA37T | 5 | – | – | 35 | M50x1.5 | 12 |
| HHA – 50T | HA50 | 4 | HA50T | 5 | – | – | 37 | M60x1.5 | 12 |
| HHR Cylinder Range |
| HHR – 30T | HA302 | 4 | HA302T, HA302G | 5,6 | 52 | 10 | 32 | M48x1.5 | 13 |
| HHR – 60T | HA603 | 4 | HA603T, HA603G | 5,6 | 80 | 10 | 32 | M70x1.5 | 13 |
| HHR – 100T | HA1003 | 4 | HA1003T, HA1003G | 5,6 | 114 | 12 | 38 | M105x2 | 13 |
| HHR – 150T | HA1508 | 4 | HA1508G | 6 | 170 | 13.5 | 50 | M150x3 | 13 |
| HHR – 250T | HA2508 | 4 | HA2508G | 6 | 242 | 13.5 | 74 | M220x3 | 13 |
| HHS Cylinder Range |
| HHS – 10T | HA102 | 4 | HA102T, HA102G | 5,6 | 32 | 7 | 21 | M28x1.5 | 13 |
| HHS – 20T | HA202 | 4 | HA202T, HA202G | 5,6 | 43 | 10 | 31 | M39x1.5 | 13 |
| HHS – 30T | HA302 | 4 | HA302T, HA302G | 5,6 | 52 | 10 | 31 | M48x1.5 | 13 |
| HHS – 60T | HA603 | 4 | HA603T, HA603G | 5,6 | 80 | 10 | 31 | M70x1.5 | 13 |
| HHS – 100T | HA1003 | 4 | HA1003T, HA1003G | 5,6 | 114 | 12 | 38 | M105x2 | 13 |
| HRA Cylinder Range |
| HRA – 30T | HA30 | 2 | HAT30 | 7 | 50 | 10 | – | – | 10 |
| HRA – 50T | HA50 | 2 | HAT50 | 7 | 70 | 11 | – | – | 10 |
| HRA – 100T | HA100 | 2 | HAT100 | 7 | 100 | 12 | – | – | 10 |
| HSG Cylinder Range |
| HSG – 150T | TS150 | 8 | – | – | 18 | – | 60 | M12x1.75 | 14 |
| HSG – 200T | TS201 | 8 | – | – | 18 | – | 124.5 | M12x1.75 | 14 |
| HSG – 300T | TS302 | 8 | – | – | 28 | – | 160 | M22x2.5 | 14 |
| HSS Cylinder Range |
| HSS – 5T | HA5 | 1 | – | – | – | – | 20 | ¾”-16UNF | 12 |
| HSS – 10T | HA10 | 1 | HAT10 | 9 | – | – | 14 | 1”-8UNC | 12 |
| HSS – 15T | HA15 | 1 | HAT10 | 9 | – | – | 14 | 1”-8UNC | 12 |
| HSS – 25T | HA25 | 1 | HAT25 | 9 | – | – | 30 | 1½”-16UN | 12 |
| HSS – 30T | HA25 | 1 | HAT25 | 9 | – | – | 30 | 1½”-16UN | 12 |
| HSS – 50T | HA50 | 2 | HAT50 | 7 | 70 | 11 | – | – | 10 |
| HSS – 75T | HA75 | 2 | HAT75 | 7 | 80 | 12 | – | – | 10 |
| HSS – 100T | HA100 | 2 | HAT100 | 7 | 100 | 12 | – | – | 10 |
| Saddle Model | Internal Saddle Thread Specification |
|---|
| HA18T | M24 |
| HA37T | M36 |
| HA50T | M48 |
| HA102T | 3/4″ – 16 UNF |
| HA202T | 1″ x 8 UNC |
| HA302T | 1 1/4″ x 7 UNC |
| HA603T | 1 5/8″ x 5 1/2″ UNS |
| HA1003T | 2 1/2″ x 8 UN |
