HP-FP Range
Description
The HP227FPC manually operated foot pump is supplied complete with 100 mm diameter pressure gauge, gauge mounting block and 3 metre length hydraulic hose with CM1 quick connect male coupler. Ideally suited for use with Hi-Force CH series crimper heads and all other Hi-Force 700 bar maximum working pressure, hydraulic tools that require a remote pump operation, the HP227FPC has a superb two speed low pressure displacement (12.9 cm3 per stroke) with automatic changeover to high pressure displacement (2.3 cm3 per stroke) up to 700 bar. Supplied with a pre-filled oil reservoir offering a usable oil capacity of 2.3 litres, the HP227FPC is supplied ready for immediate use.
The HP227FP pump incorporates the same specification and features of the HP227FPC pump however is supplied without the pressure gauge, gauge mounting block and 3 metre hose assembly.
- Working pressure 700 bar
- Two stage operation
- Durable steel construction
| Model Number | Valve Type | Usable oil cap. litres | Displacement Per Stroke cm3 | Handle Effort kg | Weight kg | |
|---|---|---|---|---|---|---|
| 1st stage | 2nd stage | |||||
| HP227FP | 2-way | 2.3 | 12.9 | 2.3 | 39 | 12.5 |
| HP227FPC | 2-way | 2.3 | 12.9 | 2.3 | 39 | 14.5 |

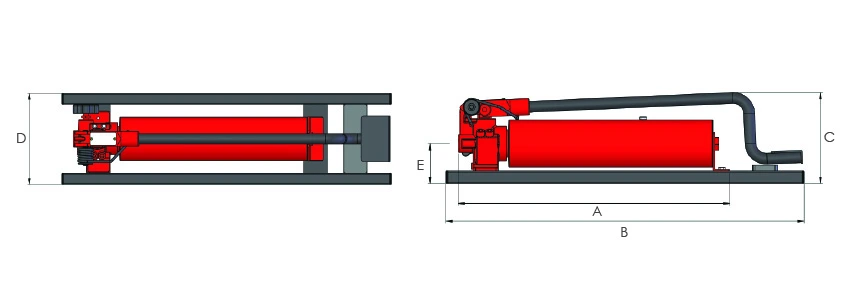

| Model Number | Dimensions in mm | ||||
|---|---|---|---|---|---|
| A | B | C | D | E | |
| HP227FP | 544 | 715 | 185 | 200 | 78 |
| HP227FPC | 544 | 763 | 227 | 200 | 78 |
