HPP Range
Description
The HPP range of two stage petrol engine driven hydraulic pumps is ideally suited for applications in locations where there is no electricity or compressed air supply available. The range has similar reservoir and valve options (excluding solenoid valves) as electric and air powered pumps. All models are 700 bar maximum working pressure and offer a low pressure flow rate of 10 litres/min with automatic changeover to a high pressure flow rate of 1.3 litres/min. Powered by a 3.35 kW rated four stroke engine, the HPP range provides reliable, independent hydraulic power. All models are fitted with a protective roll bar carrying frame for easy transportation and handling.
-
- Working pressure 700 bar
- Two stage operation
- Choice of 25, 40 or 60 litre oil reservoir
- Externally adjustable pressure relief valve
- Manual valve with load holding feature fitted as standard
- Roll bar protection frame included
| Model Number | Valve Type | Oil Capacity litres | Maximum flow rate litres/min | Weight kg | |
|---|---|---|---|---|---|
| 1st stage | 2nd stage | ||||
| HPP21012 | P-T Plate | 25 | 10 | 1.3 | 70.5 |
| HPP21014 | P-T Plate | 40 | 10 | 1.3 | 85.5 |
| HPP21016 | P-T Plate | 60 | 10 | 1.3 | 113.5 |
| HPP21022 | 2-way | 25 | 10 | 1.3 | 71.0 |
| HPP21024 | 2-way | 40 | 10 | 1.3 | 86.0 |
| HPP21026 | 2-way | 60 | 10 | 1.3 | 114.0 |
| HPP21032 | 3-way | 25 | 10 | 1.3 | 71.0 |
| HPP21034 | 3-way | 40 | 10 | 1.3 | 86.0 |
| HPP21036 | 3-way | 60 | 10 | 1.3 | 114.0 |
| HPP21042 | 4-way | 25 | 10 | 1.3 | 71.0 |
| HPP21044 | 4-way | 40 | 10 | 1.3 | 86.0 |
| HPP21046 | 4-way | 60 | 10 | 1.3 | 114.0 |
WHEEL TROLLEY
| Model Number | Description |
|---|---|
| PPA40WT | Wheel trolley for all pumps with 40 litre oil reservoir |
| PPA60WT | Wheel trolley for all pumps with 60 litre oil reservoir |

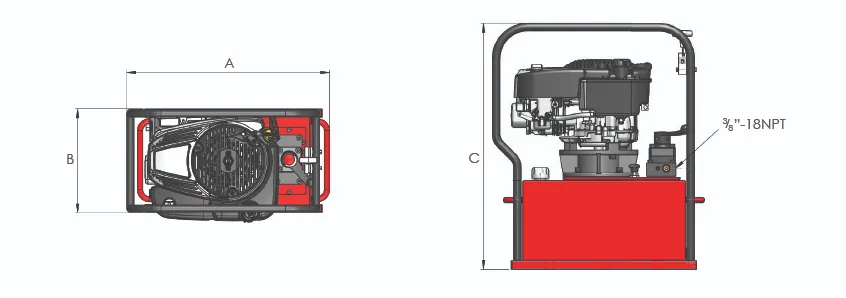

| Model Number | Dimensions in mm | ||
|---|---|---|---|
| A | B | C | |
| HPP21012 | 570 | 306 | 686 |
| HPP21014 | 570 | 306 | 795 |
| HPP21016 | 583 | 406 | 816 |
| HPP21022 | 570 | 306 | 686 |
| HPP21024 | 570 | 306 | 795 |
| HPP21026 | 583 | 406 | 816 |
| HPP21032 | 570 | 306 | 686 |
| HPP21034 | 570 | 306 | 795 |
| HPP21036 | 583 | 406 | 816 |
| HPP21042 | 570 | 306 | 686 |
| HPP21044 | 570 | 306 | 795 |
| HPP21046 | 583 | 406 | 816 |
