IS Range
Description
Hi-Force high quality imperial size heavy duty sockets are designed and manufactured for use with all Hi-Force bolting products, including hydraulic torque wrenches and impact wrenches. The IS range of imperial impact sockets offers 47 models, with square drives from ¾” to 2 ½” and across flat sizes up to 6 ⅞”. Long length, bi-hexagonal and special sockets are available on request.
- Square drives from ¾” to 2 ½”
- Across flat sizes up to 6 ⅞”
- Supplied complete with retaining ring and pin
| Model Number | Square Drive | Nut AF Inches | Dimensions in mm | |||
|---|---|---|---|---|---|---|

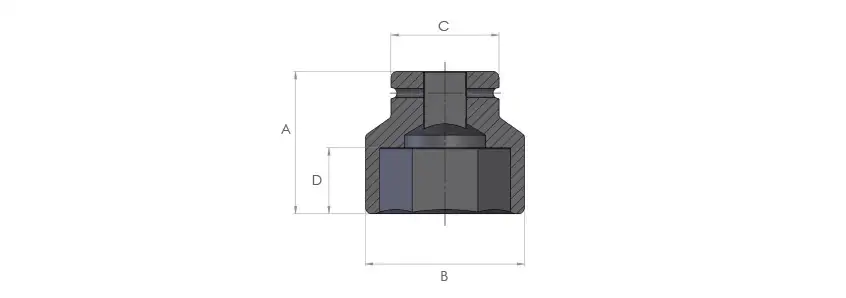

| A | B | C | D | |||
| IS2-101 | 3/4″ | 1 1/16″ | 52 | 40 | 38 | 19 |
| IS2-104 | 3/4″ | 1 1/4″ | 52 | 44 | 44 | 22 |
| IS2-107 | 3/4″ | 1 7/16″ | 56 | 51 | 44 | 25 |
| IS2-110 | 3/4″ | 1 5/8″ | 62 | 58 | 44 | 27 |
| IS2-113 | 3/4″ | 1 13/16″ | 68 | 67 | 44 | 30 |
| IS2-200 | 3/4″ | 2″ | 72 | 71 | 54 | 32 |
| IS2-203 | 3/4″ | 2 3/16″ | 74 | 77 | 54 | 35 |
| IS2-206 | 3/4″ | 2 3/8″ | 75 | 84 | 54 | 37 |
| IS9-101 | 1″ | 1 1/16″ | 58 | 44 | 51 | 19 |
| IS9-104 | 1″ | 1 1/4″ | 60 | 51 | 51 | 22 |
| IS9-107 | 1″ | 1 7/16″ | 62 | 56 | 52 | 25 |
| IS9-110 | 1″ | 1 5/8″ | 62 | 61.5 | 52 | 27 |
| IS9-113 | 1″ | 1 13/16″ | 64 | 68 | 58 | 30 |
| IS9-200 | 1″ | 2″ | 70 | 74 | 58 | 35 |
| IS9-203 | 1″ | 2 3/16″ | 72 | 80 | 62 | 35 |
| IS9-206 | 1″ | 2 3/8″ | 78 | 87 | 62 | 42 |
| IS9-209 | 1″ | 2 9/16″ | 80 | 93 | 62 | 42 |
| IS9-212 | 1″ | 2 3/4″ | 96 | 100 | 62 | 42 |
| IS9-215 | 1″ | 2 15/16″ | 98 | 105 | 86 | 45 |
| IS9-302 | 1″ | 3 1/8″ | 100 | 111 | 86 | 48 |
| IS9-308 | 1″ | 3 1/2″ | 105 | 124 | 86 | 52 |
| IS9-314 | 1″ | 3 7/8″ | 115 | 135 | 86 | 58 |
| IS5-113 | 1 1/2″ | 1 13/16″ | 84 | 76 | 86 | 30 |
| IS5-200 | 1 1/2″ | 2″ | 87 | 82 | 86 | 32 |
| IS5-203 | 1 1/2″ | 2 3/16″ | 90 | 88 | 86 | 37 |
| IS5-206 | 1 1/2″ | 2 3/8″ | 95 | 94 | 86 | 39 |
| IS5-209 | 1 1/2″ | 2 9/16″ | 100 | 100 | 86 | 42 |
| IS5-212 | 1 1/2″ | 2 3/4″ | 105 | 106 | 86 | 46 |
| IS5-215 | 1 1/2″ | 2 15/16″ | 108 | 112 | 86 | 49 |
| IS5-302 | 1 1/2″ | 3 1/8″ | 115 | 118 | 86 | 53 |
| IS5-308 | 1 1/2″ | 3 1/2″ | 123 | 129 | 86 | 59 |
| IS5-314 | 1 1/2″ | 3 7/8″ | 130 | 144 | 95 | 65 |
| IS5-404 | 1 1/2″ | 4 1/4″ | 135 | 154 | 95 | 72 |
| IS5-410 | 1 1/2″ | 4 5/8″ | 140 | 163 | 95 | 77 |
| IS5-500 | 1 1/2″ | 5″ | 145 | 177 | 127 | 80 |
| IS5-506 | 1 1/2″ | 5 3/8″ | 150 | 194 | 127 | 85 |
| IS6-302 | 2 1/2″ | 3 1/8″ | 140 | 124 | 127 | 45 |
| IS6-308 | 2 1/2″ | 3 1/2″ | 140 | 135 | 127 | 52 |
| IS6-314 | 2 1/2″ | 3 7/8″ | 150 | 147 | 127 | 58 |
| IS6-404 | 2 1/2″ | 4 1/4″ | 160 | 158 | 127 | 60 |
| IS6-410 | 2 1/2″ | 4 5/8″ | 170 | 172 | 127 | 67 |
| IS6-500 | 2 1/2″ | 5″ | 175 | 184 | 127 | 72 |
| IS6-506 | 2 1/2″ | 5 3/8″ | 180 | 197 | 152 | 77 |
| IS6-512 | 2 1/2″ | 5 3/4″ | 185 | 214 | 152 | 83 |
| IS6-602 | 2 1/2″ | 6 1/8″ | 190 | 224 | 152 | 90 |
| IS6-608 | 2 1/2″ | 6 1/2″ | 195 | 234 | 152 | 95 |
| IS6-614 | 2 1/2″ | 6 7/8″ | 200 | 247 | 152 | 100 |
- IS Catalogue Page
- Equivalent Imperial/Metric Conversion Chart
