JS Range
Description
The JS4 hydraulic spreader is the ideal solution for spreading, wedging and prising operations in a wide variety of industrial applications. The compact, low weight, spring assisted return design enables the tool to fit into a gap of 13 mm and offers a maximum spread of 84 mm.
Manufactured from high strength steel, with a maximum pressure of 700 bar, the JS4 is supplied fitted with a quick connect female half coupler, and can be used with HP110 manual hand pump and HC hose.
- Capacity 0.9 tonnes
- Maximum spread 84 mm
- Working pressure 700 bar

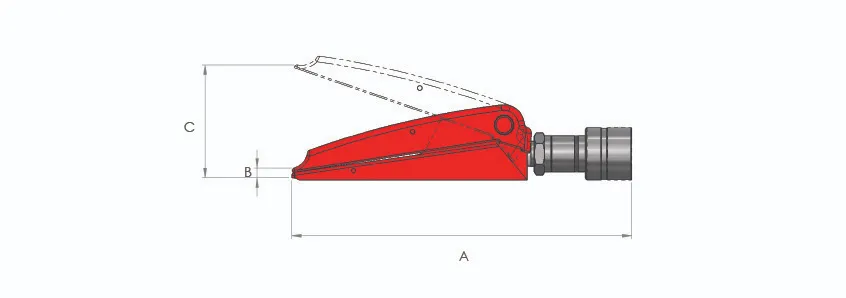

| Model Number | Capacity Tonnes | Oil Capacity cm3 | Weight kg | Dimensions in mm | ||
|---|---|---|---|---|---|---|
| A | B | C | ||||
| JS4 | 0.9 | 10 | 2.2 | 234 | 13 | 84 |
