PKC Range
Description
The PKC heavy duty, multi-purpose hydraulic puller kit range is extremely versatile and includes 2-way and 3-way grip pullers, bearing pullers, bearing cup pullers and cross head pullers. All models are designed for pulling, pushing, installing and removing all press fitted or heat fitted parts such as gears, bearings, sleeves, cogs, internal bearings, wheels, sprockets, flywheels, etc. The range offers a selection of 4 models with pulling capacities up to 50 tonnes, all supplied complete with a full set of necessary hydraulic components.
-
- Capacities from 10 to 50 tonnes
- Combination of 4 different pullers in one set
- High quality, drop forged steel components
- Multi-purpose puller kit comprising of grip puller, bearing puller, bearing cup puller and cross head puller
- Choice of 2-way or 3-way jaw pulling options with PKC10 offering a combination head (see Note 2)
- Incorporates safety overload prevention valve within hydraulic pump
- Supplied as a complete set with all necessary hydraulic components in handy storage case (see Note 3)
| Model Number | Capacity tonnes | Cylinder Model | Pump Model | Weight kg |
|---|---|---|---|---|
| PKC10 | 10 | HHS102 | PK10-HP | 32.8 |
| PKC20 | 20 | HHS202 | PK20-HP | 59.3 |
| PKC30 | 30 | HHS302 | PK30-HP | 117.0 |
| PKC50 | 50 | HHS603 | PK50-HP | 235.0 |
Note:
1) Dimensions A & B calculated with 15° outward angled puller legs.
2) PKC10 is supplied with a combination crosshead. This combination crosshead can be used as a 2-jaw puller when the legs are arranged at 180Ëš and as a 3-jaw puller when the legs are arranged at 120Ëš.
3) All PKC puller kits are supplied in a metal storage box with the exception of PKC50, which is supplied in an alternate storage case.

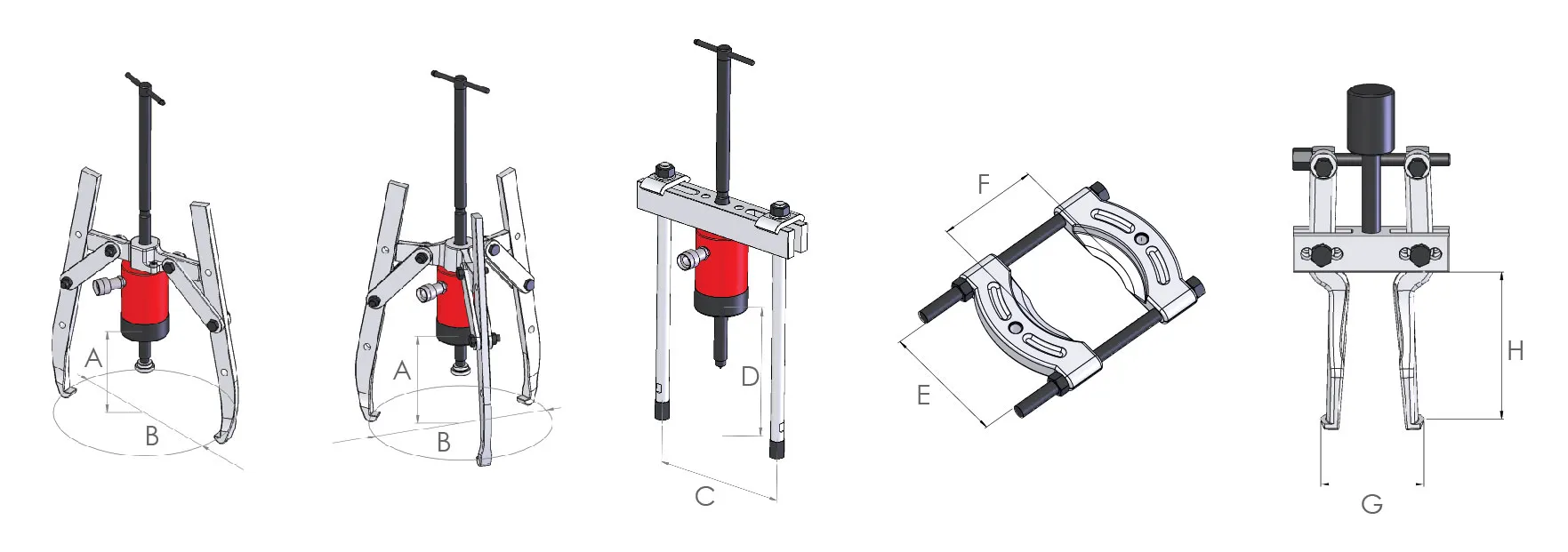

| Model Number | Dimensions in mm | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B min | B max | C min | C max | D | E | F min | F max | G min | G max | H | |
| PKC10 | 296 | 50 | 350 | 115 | 260 | 300 | 110 | 10 | 110 | 40 | 145 | 115 |
| PKC20 | 320 | 70 | 480 | 135 | 345 | 265 | 155 | 12 | 134 | 40 | 145 | 115 |
| PKC30 | 407 | 90 | 580 | 180 | 440 | 284 | 260 | 17 | 255 | 60 | 240 | 150 |
| PKC50 | 727 | 120 | 920 | 230 | 580 | 447 | 300 | 20 | 300 | 60 | 240 | 150 |
Note: Dimensions A & B calculated with 15° outward angled puller legs.
