Directional Control Valves
Description
Hi-Force control valves are designed to provide precise control of the hydraulic system either by accurate pressure or directional flow control. The PMV range of pump mounted valves is identical to the valves fitted to the Hi-Force powered pumps and can be easily interchanged, making the powered pump even more versatile. The RMV range allows for remote mounting away from the pump.
- Working pressure 700 bar
- Pump or remote mounted design
- Manual valve options available

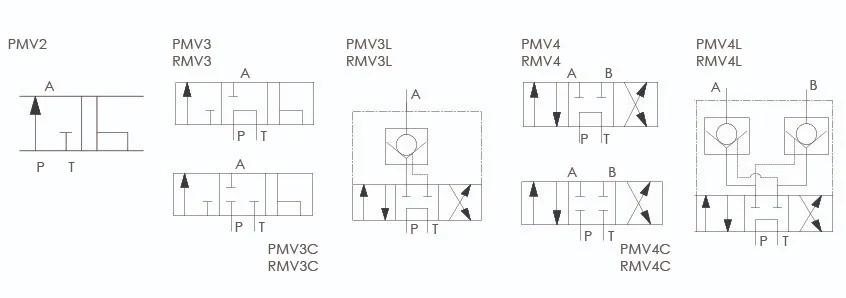

| Description | Model Number | |||
|---|---|---|---|---|
| Manual Valve No Load Holding | Manual Valve With Load Holding | Manual Valve Closed Centre | ||
| Pump mounted, 2-way, 2 position valve | PMV2 | – | – | |
| Pump mounted, 3-way, 3 position valve | PMV3 | PMV3L | PMV3C | |
| Pump mounted, 4-way, 3 position valve | PMV4 | PMV4L | PMV4C | |
| Remote mounted, 3-way, 3 position valve | RMV3 | RMV3L | RMV3C | |
| Remote mounted, 4-way, 3 position valve | RMV4 | RMV4L | RMV4C | |
