RSG Range
Description
The RSG heavy duty range of single roller moving skates is available with capacities up to 200 tonnes each skate and incorporates a chain groove cut into the centre member of the skate, which helps to keep the chain running parallel with the body and is specially suited for moving loads over long distances. All models feature high quality, heat treated components and are supplied with 4 mounting bolt holes for easy attachment to the load.
- Capacities from 40 to 200 tonnes
- Choice of 7 models available
- Fitted with large load bearing top plate
| Model Number | Capacity Tonnes | Rollers in Contact | Rollers Total | Weight kg |
|---|---|---|---|---|
| RSG40 | 40 | 4 | 13 | 19.6 |
| RSG50 | 50 | 6 | 17 | 29.5 |
| RSG65 | 65 | 4 | 13 | 51.7 |
| RSG85 | 85 | 6 | 17 | 93.0 |
| RSG100 | 100 | 8 | 21 | 109.0 |
| RSG150 | 150 | 9 | 23 | 162.0 |
| RSG200 | 200 | 13 | 31 | 266.0 |

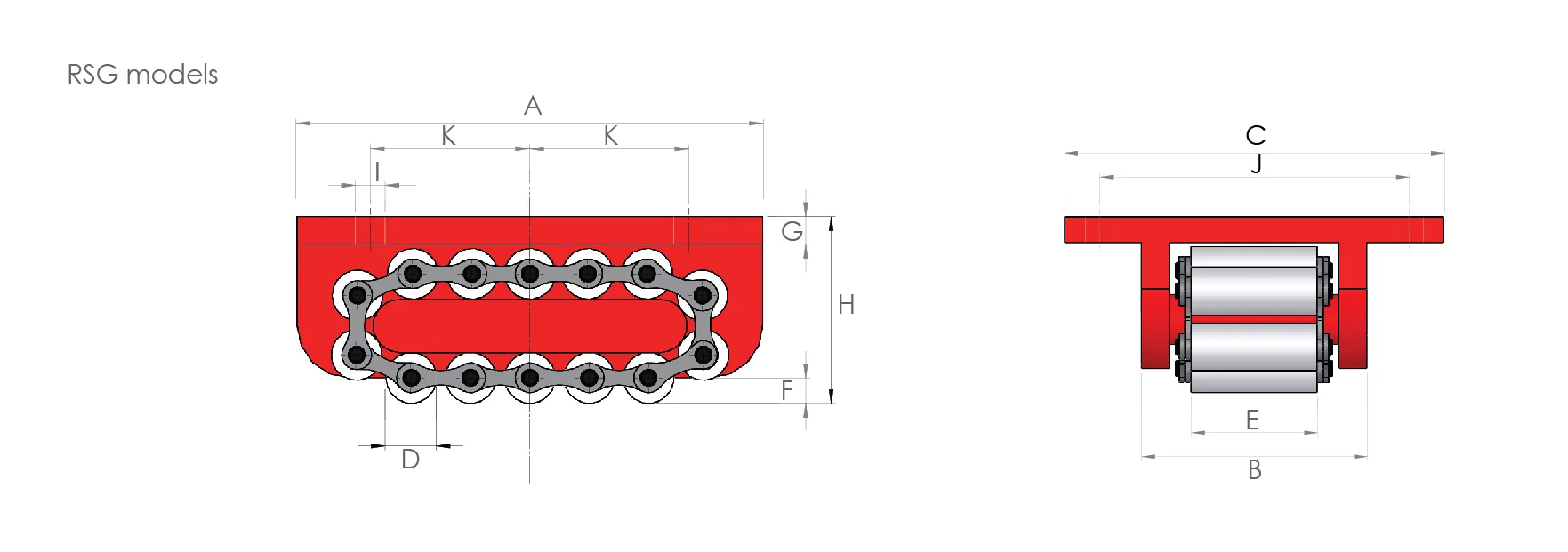

| Model Number | Dimensions in mm | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | ØD | E | F | G | H | ØI | J | K | |
| RSG40 | 270 | 130 | 210 | 30 | 68 | 10 | 14 | 104 | 18 | 175 | 95 |
| RSG50 | 320 | 140 | 220 | 30 | 68 | 10 | 18 | 115 | 18 | 180 | 120 |
| RSG65 | 380 | 168 | 270 | 42 | 76 | 19 | 19 | 145 | 22 | 220 | 140 |
| RSG85 | 530 | 182 | 300 | 50 | 86 | 19 | 19 | 165 | 22 | 240 | 205 |
| RSG100 | 580 | 182 | 300 | 50 | 86 | 19 | 23 | 170 | 26 | 250 | 250 |
| RSG150 | 650 | 205 | 350 | 50 | 100 | 20 | 28 | 190 | 26 | 280 | 240 |
| RSG200 | 900 | 205 | 380 | 50 | 100 | 20 | 38 | 200 | 33 | 300 | 360 |
