RSN Range
Description
The RSN industrial, low profile skates are ideal for moving moderately heavy loads in the construction, mining and steel industries. Available with capacities of up to 80 tonnes, these skates can move and position heavy and irregular shaped loads easily and more economically than other lifting devices. Optional accessories such as turntables and levelling plates are available for use with the RSN skates.
- Capacities from 10 to 80 tonnes
- Endless hardened roller chain
- Full range of accessories available
| Model Number | Capacity tonnes | Rollers in Contact | Rollers Total | Weight kg |
|---|---|---|---|---|
| RSN10 | 10 | 5 | 15 | 5.2 |
| RSN15 | 15 | 4 | 13 | 7.3 |
| RSN30 | 30 | 4 | 13 | 13.0 |
| RSN60 | 60 | 4 | 13 | 32.0 |
| RSN80 | 80 | 6 | 17 | 61.0 |
ACCESSORIES
| Model Number | Description | Diameter mm | Capacity tonnes | Weight kg |
|---|---|---|---|---|
| RTT10 | Turntable | 130 | 10 | 4.5 |
| RTT15 | Turntable | 130 | 15 | 4.5 |
| RTT30 | Turntable | 150 | 30 | 6.7 |
| RTT60 | Turntable | 190 | 60 | 13.7 |
| RTT80 | Turntable | 220 | 80 | 18.9 |
| RLP10 | Levelling plate | n/a | 10 | 3.7 |
| RLP15 | Levelling plate | n/a | 15 | 3.7 |
| RLP30 | Levelling plate | n/a | 30 | 5.3 |
| RLP60 | Levelling plate | n/a | 60 | 13.8 |
| RLP80 | Levelling plate | n/a | 80 | 18.8 |

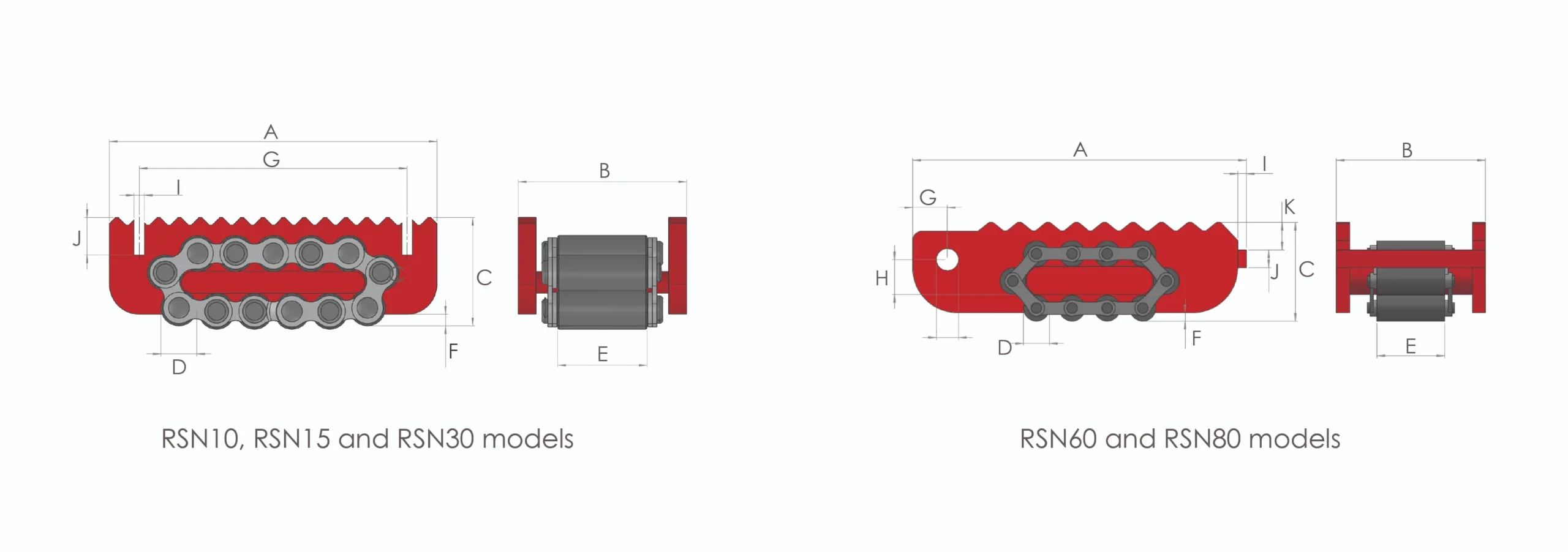

| Model Number | Dimensions in mm | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | ØD | E | F | G | H | I | J | K | |
| RSN10 | 210 | 100 | 66 | 18 | 51 | 6 | 167 | – | 6 | 25 | – |
| RSN15 | 220 | 113 | 75 | 24 | 60 | 10 | 180 | – | 6 | 25 | – |
| RSN30 | 270 | 130 | 92 | 30 | 68 | 10 | 217 | – | 6 | 25 | – |
| RSN60 | 380 | 168 | 127 | 42 | 76 | 16 | 36 | 48 | 10 | 40 | 15 |
| RSN80 | 530 | 182 | 147 | 50 | 86 | 19 | 36 | 60 | 10 | 40 | 15 |
