SLV Range

Description

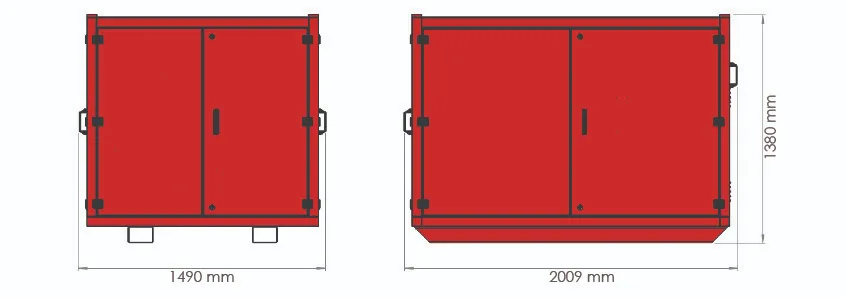

The SLV range has been designed for precise lifting and lowering of heavy loads using multiple synchronised hydraulic cylinders. The system comprises of a heavy duty three phase electric motor, operator control panel to monitor up to 32 channels and a robust framework for transportation and storage of the entire system.

The SLV allows control from 8 to 32 lifting points and the system can be adapted to suit customer’s special lifting requirements. Customised systems can also be tailored for unique application requirements.

• • Working pressure 700 bar
  • Control from 8 to 32 lifting points
  • Variable speed control
  • High efficiency three phase variable speed drive motor
  • Two stage pump delivering up to 19.6L in low pressure and up to 4.8L at 700 bar with option of reducing the flow rate using the variable speed drive controller
  • Selection of outlet valves with single or double acting controls on each outlet
  • 700 bar pressure transducers fitted as standard on each outlet
  • Reservoir capacity of 200 and 400 litres
  • Intuitive touch screen controller with display options: Stroke length, Cylinder load or Total load and Centre of Gravity
  • Includes a system data logging feature which allows operators to obtain a post lift report or end of project technical summary
  • String pot sensors as standard with alternatives available on request
  • Operating modes include Manual Lift/Lower, Automatic Lift/Lower and Automatic Preload
