STS Components – Metric

Description

Similar to the imperial tensioner components, the Hi-Force metric topside hydraulic bolt tensioners are also modular in design and can be adapted to another thread size, within the tensioner range, by purchasing individual components or a simple conversion kit. By changing the required components, Hi-Force STS bolt tensioners offer the user even greater versatility at an economical cost.

Tensioner models STS1, STS3, STS4 and STS6 are available with two different bridge sizes, hence always check whether or not the required thread change is possible within the bridge size. DO NOT mix components and make sure that all components match up. A large bridge will require the usage of a long threaded puller to ensure sufficient thread engagement, as well as a large size nut rotating socket.

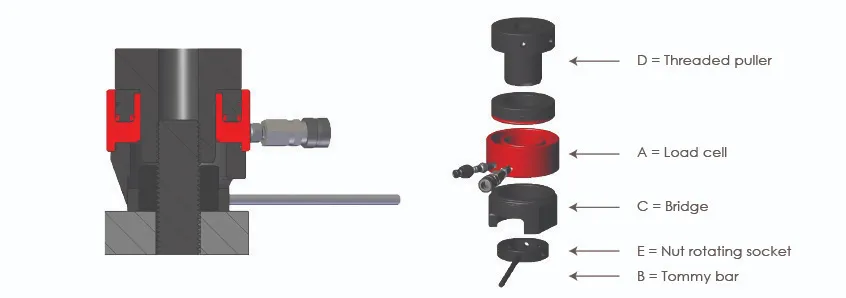

The table below provides all the information to select the components, comprising of short threaded adapter, load cell, small bridge, small nut rotating socket and tommy bar, to modify your existing tensioner to suit another bolt size. Changes are only possible within the same tensioner size. It is essential that all the components or selected conversion kits have the same suffix as the target tensioner size (i.e. B1, B2 or B3).

Examples:
To change from STS3-M42B1 to STS3-M48B1 would require conversion kit CK3-M48B1 only.
To change from STS3-M48B1 to STS3-M52B2 would require conversion kit CK3-M52B2 and bridge STS3-B2.

• For use with STS Metric Tensioners
• Modular design for greater flexibility
• Versatile cost saving option
• Unthreaded pullers can be provided upon request for customers who prefer to customise their own non-standard threads to suit specific tensioning needs
