TWS-N Range
Description
Hi-Force TWS-N series lightweight aluminium hydraulic torque wrenches are designed to handle the toughest bolting jobs accurately and quickly. All models provide a torque accuracy of +/- 3%. The internal reaction arm spline allows the operator to easily position the tool and, if necessary, react directly off the tool body in very confined access applications. All models incorporate an easily reversible high grade alloy steel square drive enabling the operator to quickly switch from tightening to loosening applications.
All models are fitted with a multi-directional 360° x 180° swivel with quick release couplings. The multi-directional feature enables easy positioning of hydraulic hoses during operation, preventing damage from pinching or kinking.
Optional allen hex drives are available along with a comprehensive range of high-quality torque wrench sockets.
- Torque capacities up to 36992 Nm
- Torque accuracy of +/- 3%
- Working pressure 700 bar
- Compact lightweight aluminium construction
- Multi-purpose reaction arm with safety lock feature
- Reversible square drive for tightening and loosening applications
- Internal reaction arm spline
- Suitable for continuous operation at maximum pressure
| Model Number | Torque Capacity | Square Drive Size | Weight incl. reaction foot kg | |
|---|---|---|---|---|
| Nm at 700 bar | lbf.ft at 10,000 psi | |||
| TWS17N | 1727 | 1254 | 3/4″ | 1.9 |
| TWS45N | 4529 | 3289 | 1″ | 4.8 |
| TWS100N | 10064 | 7527 | 1 1/2″ | 9.0 |
| TWS150N | 14974 | 10873 | 1 1/2″ | 15.0 |
| TWS370N | 36992 | 26860 | 2 1/2″ | 32.5 |

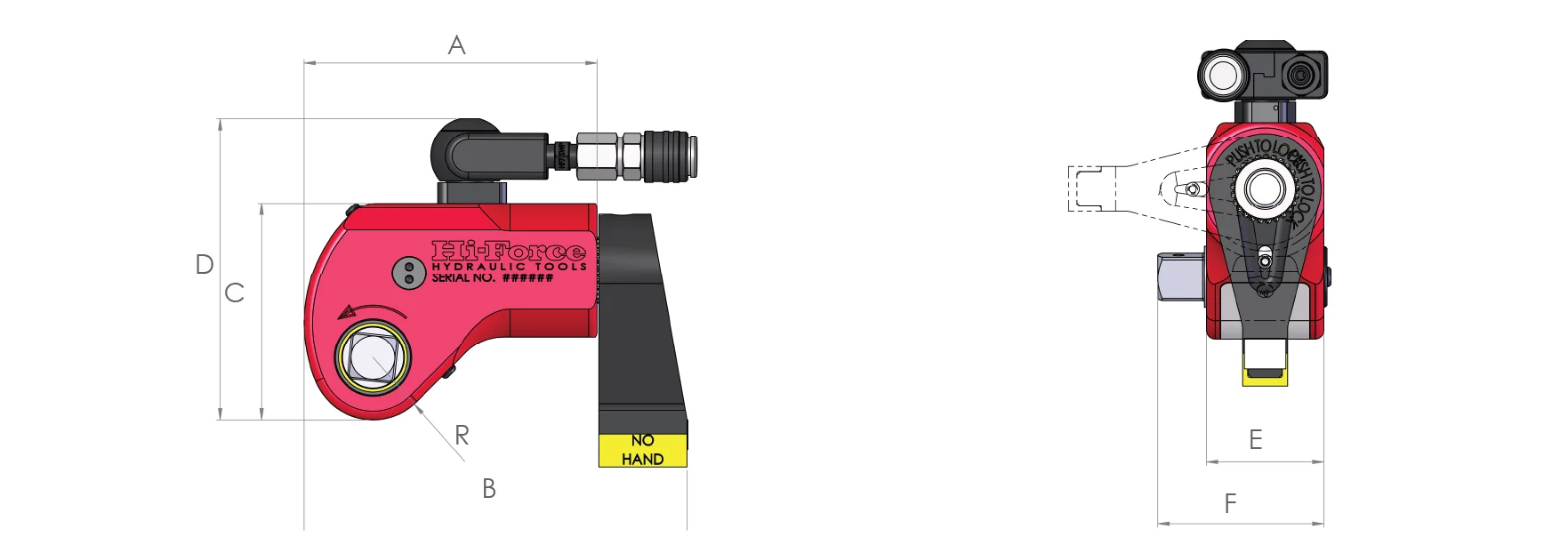

| Model Number | Dimensions in mm | ||||||
|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | R | |
| TWS17N | 134 | 174 | 93 | 141 | 51 | 73 | 28 |
| TWS45N | 170 | 222 | 126 | 175 | 68 | 98 | 36 |
| TWS100N | 223 | 293 | 163 | 211 | 92 | 134 | 46 |
| TWS150N | 247 | 323 | 189 | 237 | 100 | 138 | 54 |
| TWS370N | 329 | 432 | 239 | 289 | 137 | 200 | 66 |
