BW Range
Description
The Hi-Force BW series of backup wrenches provide an easily fitted and easily removable back nut reaction arm to prevent both nuts rotating during tightening applications. The ‘T-Bar’ design adjustable reaction point prevents lock up once tightening is completed.
- Suitable for use with TWS-N & TWH-N Wrenches
- Interchangeable hexagon links
- Positive release mechanism
| Model Number | Description | BWH incl. set of links: | |
|---|---|---|---|
| From | To | ||
| BWI-SET | Holder complete with imperial link set (12 pcs) | 1 7/16″ | 3 7/8″ |
| Model Number | Description | Hexagon AF Size |
|---|---|---|
| BWH | Backup wrench holder | – |
| BWI-107 | Hexagon link | 1 7/16″ |
| BWI-110 | Hexagon link | 1 5/8″ |
| BWI-113 | Hexagon link | 1 13/16″ |
| BWI-200 | Hexagon link | 2″ |
| BWI-203 | Hexagon link | 2 3/16″ |
| BWI-206 | Hexagon link | 2 3/8″ |
| BWI-209 | Hexagon link | 2 9/16″ |
| BWI-212 | Hexagon link | 2 3/4″ |
| BWI-215 | Hexagon link | 2 15/16″ |
| BWI-302 | Hexagon link | 3 1/8″ |
| BWI-308 | Hexagon link | 3 1/2″ |
| BWI-314 | Hexagon link | 3 7/8″ |
| Model Number | Description | BWH incl. set of links: | |
|---|---|---|---|
| From | To | ||
| BWM-SET | Holder complete with metric link set (14 pcs) | 36 mm | 100 mm |
| Model Number | Description | Hexagon AF Size |
|---|---|---|
| BWH | Backup wrench holder | – |
| BWM-36 | Hexagon link | 36 mm |
| BWM-41 | Hexagon link | 41 mm |
| BWM-46 | Hexagon link | 46 mm |
| BWM-50 | Hexagon link | 50 mm |
| BWM-55 | Hexagon link | 55 mm |
| BWM-60 | Hexagon link | 60 mm |
| BWM-65 | Hexagon link | 65 mm |
| BWM-70 | Hexagon link | 70 mm |
| BWM-75 | Hexagon link | 75 mm |
| BWM-80 | Hexagon link | 80 mm |
| BWM-85 | Hexagon link | 85 mm |
| BWM-90 | Hexagon link | 90 mm |
| BWM-95 | Hexagon link | 95 mm |
| BWM-100 | Hexagon link | 100 mm |

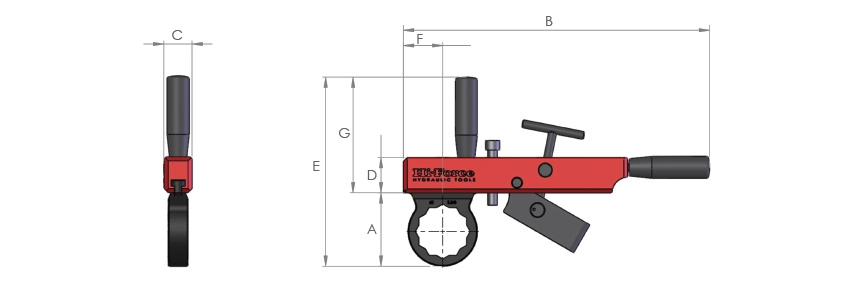

IMPERIAL HEXAGON LINKS
| Model Number | Dimensions in mm | ||||||
|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | |
| BWI-107 | 64.5 | 390 | 36 | 45 | 211.5 | 50 | 147 |
| BWI-110 | 73.5 | 390 | 36 | 45 | 220.5 | 50 | 147 |
| BWI-113 | 78.5 | 390 | 36 | 45 | 225.5 | 50 | 147 |
| BWI-200 | 85 | 390 | 36 | 45 | 232 | 50 | 147 |
| BWI-203 | 87.5 | 390 | 36 | 45 | 234.5 | 50 | 147 |
| BWI-206 | 93 | 390 | 36 | 45 | 240 | 50 | 147 |
| BWI-209 | 97.5 | 390 | 36 | 45 | 244.5 | 50 | 147 |
| BWI-212 | 104.5 | 390 | 36 | 45 | 251.5 | 50 | 147 |
| BWI-215 | 113 | 390 | 36 | 45 | 260 | 50 | 147 |
| BWI-302 | 119.5 | 390 | 36 | 45 | 266.5 | 50 | 147 |
| BWI-308 | 132.5 | 390 | 36 | 45 | 279.5 | 50 | 147 |
| BWI-314 | 147.5 | 390 | 36 | 45 | 294.5 | 50 | 147 |
METRIC HEXAGON LINKS
| Model Number | Dimensions in mm | ||||||
|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | |
| BWM-36 | 64.5 | 390 | 36 | 45 | 211.5 | 50 | 147 |
| BWM-41 | 73.5 | 390 | 36 | 45 | 220.5 | 50 | 147 |
| BWM-46 | 78.5 | 390 | 36 | 45 | 225.5 | 50 | 147 |
| BWM-50 | 85 | 390 | 36 | 45 | 232 | 50 | 147 |
| BWM-55 | 87.5 | 390 | 36 | 45 | 234.5 | 50 | 147 |
| BWM-60 | 93 | 390 | 36 | 45 | 240 | 50 | 147 |
| BWM-65 | 97.5 | 390 | 36 | 45 | 244.5 | 50 | 147 |
| BWM-70 | 104.5 | 390 | 36 | 45 | 251.5 | 50 | 147 |
| BWM-75 | 113 | 390 | 36 | 45 | 260 | 50 | 147 |
| BWM-80 | 119.5 | 390 | 36 | 45 | 266.5 | 50 | 147 |
| BWM-85 | 130 | 390 | 36 | 45 | 277 | 50 | 147 |
| BWM-90 | 135.5 | 390 | 36 | 45 | 282.5 | 50 | 147 |
| BWM-95 | 143 | 390 | 36 | 45 | 290 | 50 | 147 |
| BWM-100 | 148 | 390 | 36 | 45 | 295 | 50 | 147 |
