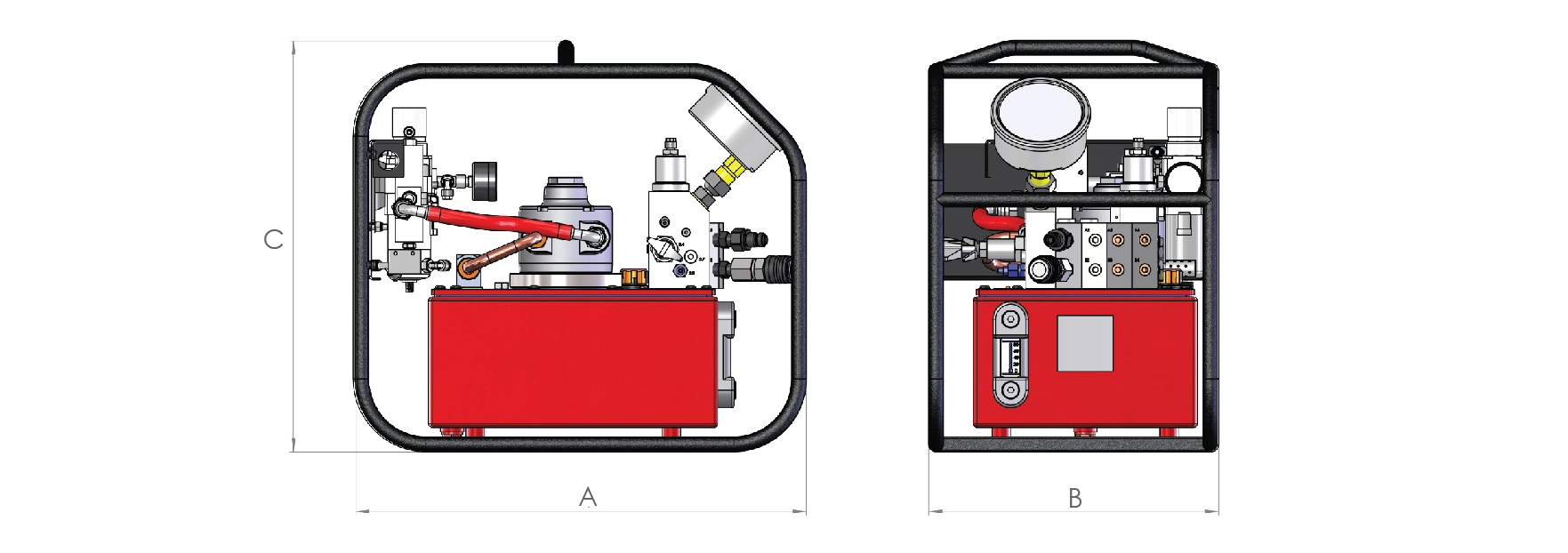

TPA Range

Description

Hi-Force TPA air driven hydraulic torque wrench pumps have been designed to streamline and enhance bolting operations. The pumps utilise compressed air to generate precise hydraulic pressure and the 3-stage design provides a faster flow at mid-range pressure, enabling projects with demanding time constraints to be completed as safely and efficiently as possible. All models operate at 700 bar maximum working pressure and are compatible for use with both the TWS-N square drive and TWH-N low profile female hexagon design Hi-Force hydraulic torque wrenches.

• Working pressure 700 bar
• High flow 3-stage pump
• Compact and lightweight

• Low noise operation (<90 db)
• Supplied fitted with one set of quick connect couplings
• Exhaust air radiator cooling system fitted as standard
• Adjustable torque setting pressure relief valve with locking nut
• Remote hand pendant controller with 5 metre cable for easy operation
• Multi-outlet split block for simultaneous operation of up to 4 wrenches
• Factory fitted roll bar protection and carrying frame
