ACP Range
Description
The ACP heavy duty, auto-centering hydraulic puller kit range offers a choice of 4 models, with capacities from 10 to 50 tonnes. All models are supplied complete with a detachable hollow ram cylinder, manually operated pump, hydraulic hose and a 100 mm diameter pressure gauge. All models are easy to set up and are the ideal tool for all pulling, pushing, installing and removing applications required for press fitted or heat fitted parts, including wheels, sprockets, flywheels, gears and bearings.
- Capacities from 10 to 50 tonnes
- Quick set-up time, easy to use
- High quality, drop forged steel components
- Self-centering design allows secure positioning of jaws
- Incorporates safety overload prevention valve within the hydraulic pump
- Supplied as a complete set with all necessary hydraulic components in handy storage case
- Model ACP10 offers a choice of either 2-way or 3-way puller operation (see Note)
| Model Number | Capacity tonnes | Type of Puller | Cylinder Model | Pump Model | Weight kg |
|---|---|---|---|---|---|
| ACP10 | 10 | 2 & 3-way jaw | HHS102 | PK10-HP | 24.5 |
| ACP20 | 20 | 3-way jaw | HHS202 | PK20-HP | 44.0 |
| ACP30 | 30 | 3-way jaw | HHS302 | PK30-HP | 76.5 |
| ACP50 | 50 | 3-way jaw | HHS603 | PK50-HP | 181.0 |
ACP10 is supplied with a combination crosshead. This combination crosshead can be used as a 2-jaw puller when the legs are arranged at 180˚ and as a 3-jaw puller when the legs are arranged at 120˚.

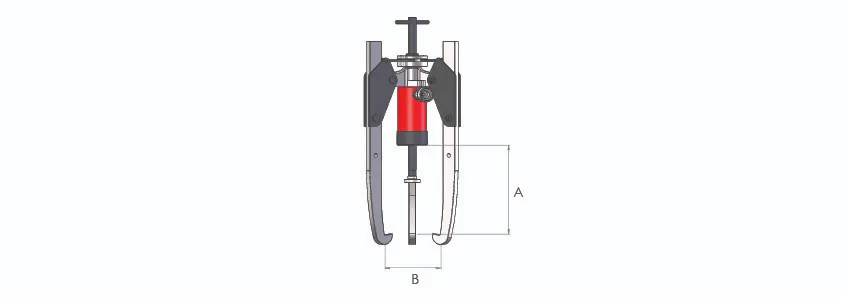

| Model Number | Dimensions in mm | ||
|---|---|---|---|
| A | B min | B max | |
| ACP10 | 296 | 50 | 350 |
| ACP20 | 320 | 70 | 480 |
| ACP30 | 407 | 90 | 580 |
| ACP50 | 727 | 120 | 920 |
