HPS Range
Description
The HPS pad cylinder range offers the best capacity, closed height and stroke length combination, spring assisted return cylinders in the industry. Ideally suited for applications where a low closed height and maximum possible stroke is of prime importance, these highly versatile cylinders are extensively used for maintenance, structural weld positioning, rigging, flange separating and many other applications.
- Capacities from 4.5 to 147 tonnes
- Stroke lengths from 6 to 16 mm
- Working pressure 700 bar
- Single acting, spring assisted return
- Nitrocarburised piston rod
- Low friction bearing surfaces
- Anti-extrusion seals
- Customised and special design cylinders are available on request
| Model Number | Capacity tonnes | Stroke mm | Oil cap. cm3 | Cyl. eff. area cm2 | Weight kg |
|---|---|---|---|---|---|
| HPS50 | 4.5 | 6 | 4 | 6.4 | 0.8 |
| HPS51 | 4.5 | 16 | 10 | 6.4 | 0.9 |
| HPS100 | 10 | 10 | 14 | 14.4 | 1.6 |
| HPS200 | 20 | 11 | 31 | 28.6 | 2.6 |
| HPS300 | 32 | 12 | 55 | 45.6 | 4.2 |
| HPS500 | 50 | 15 | 107 | 71.3 | 6.6 |
| HPS750 | 73 | 16 | 164 | 102.7 | 10.4 |
| HPS1000 | 109 | 16 | 245 | 153.4 | 23.2 |
| HPS1500 | 147 | 16 | 330 | 206.2 | 28.5 |

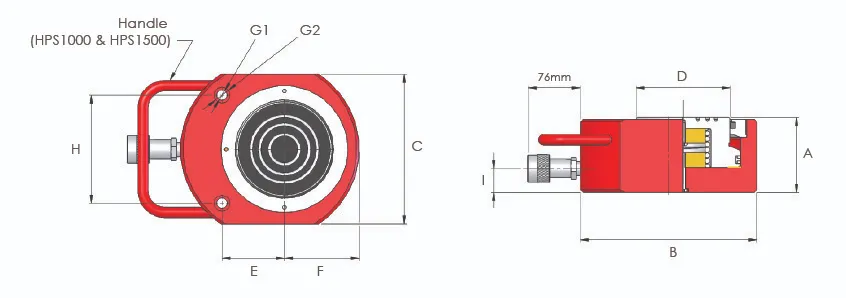

| Model Number | Dimensions in mm | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G1 | G2 | H | I | |
| HPS50 | 32 | 60 | 38 | 24 | 20 | 19 | 5.6 | 9.8 | 26 | 19 |
| HPS51 | 42 | 60 | 38 | 24 | 20 | 19 | 5.6 | 9.8 | 26 | 19 |
| HPS100 | 46 | 81 | 56 | 38 | 34 | 28 | 6.8 | 11.3 | 37 | 19 |
| HPS200 | 52 | 100 | 76 | 51 | 40 | 39 | 8.8 | 14.3 | 50 | 19 |
| HPS300 | 59 | 115 | 95 | 60 | 46 | 48 | 8.8 | 14.3 | 52 | 19 |
| HPS500 | 67 | 140 | 114 | 70 | 54 | 60 | 10.8 | 17.3 | 67 | 20 |
| HPS750 | 81 | 165 | 140 | 82 | 67 | 70 | 13 | 19 | 76 | 21 |
| HPS1000 | 91 | 215 | 180 | 114 | 75 | 90 | 12.8 | 19 | 130 | 29 |
| HPS1500 | 100 | 215 | 191 | 114 | 83 | 95 | 13 | 19 | 117 | 29 |
