HCH Range
Description
The HCH range of hydraulic cutter heads provides a quick, safe and cost-effective solution for cutting copper, aluminium and telephone cables in heavy engineering, construction, mining, manufacturing and many other industries. Fitted with high quality steel cutting blades, the HCH models offer a cutting force up to 12 tonnes with maximum cutting capacity up to 120 mm. An extensive range of Hi-Force manually operated and powered pumps suitable for use with the HCH cutters are available.
- Cutting capacity up to 120 mm diameter
- Compact and lightweight
- Working pressure 700 bar
- Single acting, spring assisted return design
- High quality tool steel cutting blades
- Fitted with quick connect couplings for easy connection to hydraulic pump & hose
- Suitable for cutting copper, aluminium and telephone cables including armoured and lead sheathed cables
- Carrying handle fitted as standard on HCH120 model

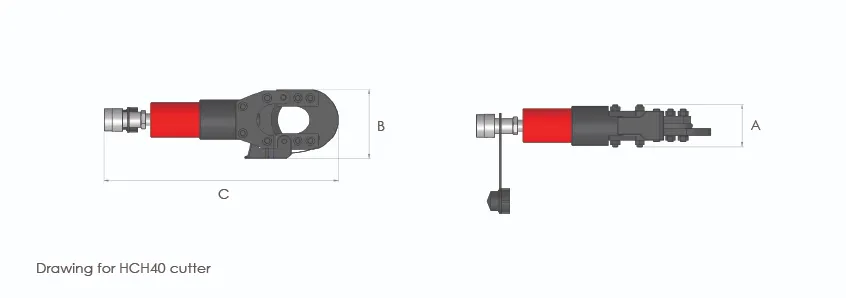

| Model Number | Cutting Force tonnes | Weight kg | Dimensions in mm | |||
|---|---|---|---|---|---|---|
| A | B | C | D | |||
| HCH40 | 7 | 2.8 | 60 | 101 | 330 | – |
| HCH120 | 12 | 15.0 | 80 | 178 | 702 | 248 |
| Material | Description | Maximum diameter cutting capacity in mm | |
|---|---|---|---|
| HCH40 | HCH120 | ||
| Steel Wire Rope | 6×7 Hempcore | 20 | – |
| 6×12 Hempcore | 25 | – | |
| 6×19 Hempcore | 25 | – | |
| Round Bar | Soft copper bar | 25 | – |
| Soft aluminium bar | 25 | – | |
| Soft steel bar (below SS41) | 16 | – | |
| Wire Strands | Bare copper strands | 40 | 42 |
| Bare aluminium strands | 40 | 46 | |
| Cable | Telephone cable CCP | – | 120 |
| Armoured underground cable | 40 | 120 | |
Note: The cable of XLPE armoured underground cable cannot contain ‘PVC cover’ and ‘steel wire’.
