Description
The Hi-Force HHP series hydraulic hole puncher range offers a choice of two models comprising of the HHP30, 26 tonnes capacity single acting version, and the HHP50, 44 tonnes capacity double acting version. Both models are suitable for punching holes in steel plate as per the respective capacity of each model and are supplied complete with standard punch and die sets and an integral positioning and carrying handle.
- Punching force up to 44 tonnes
- Throat depth up to 75 mm
- Working pressure 700 bar

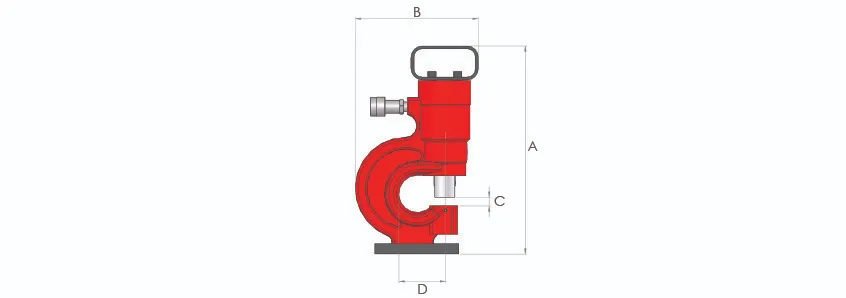

| Model Number | Maximum Force Tonnes | Throat Depth mm | Punch Capacity mm | Standard Punch/Die Sets included mm | Weight excl. Pump kg |
|---|
| Steel plate | Hole punch diameter |
|---|
| HHP30 | 26 | 75 | 10 | up to 20.5 | 10.5, 13.5, 17.5, 20.5 | 13 |
| HHP50 | 44 | 65 | 15 | up to 25.5 | 10.5, 13.5, 17.5, 20.5, 25.5 | 42 |
| Model Number | Recommended Pump & Hose |
|---|
| Manually operated | Pneumatically operated |
|---|
| HHP30 | HP232 complete with HC3 3m hose | AHP1120 complete with HC3 3m hose |
| HHP50 | HP232D complete with 2 x HC3 | AHP1141 complete with 2 x HC3 |
Note: Pumps and hoses supplied separately
