Description

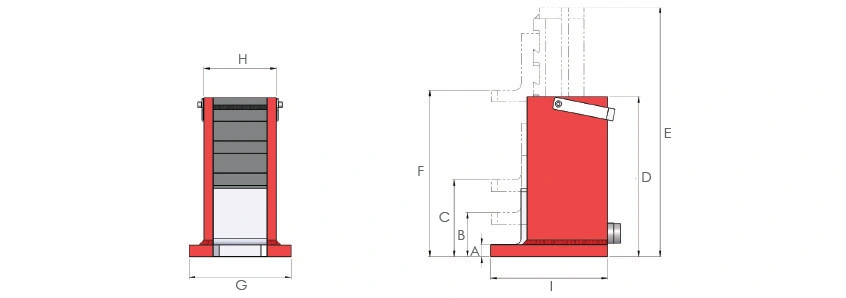

The HMJ range of hydraulic machine lifting jacks are designed specifically for lifting heavy equipment and machinery where a minimum low height lifting access point is available. The low height lifting toe is precision guided throughout its lifting stroke to reduce friction and prevent the hydraulic cylinder from potential side loading. Both models are 700 bar maximum working pressure and incorporate a 150 mm hydraulic lift with a lifting toe, which can be preset at three different initial lifting positions, for even greater flexibility. Suitable manual or powered pumps for use with HMJ jacks are available.
- Capacities of 10 to 25 tonnes
- Stroke length 150 mm
- Working pressure 700 bar
- Multi-position lifting toe with minimum height of 25 mm
- Remote operation gives improved operator safety
- Can be used for simultaneous multiple lift point applications
