JCS Range
Description
The Hi-Force JCS range of compact jacks is ideally suited for applications requiring a lifting or positioning force in confined spaces. Lightweight, easy to operate and manufactured from high grade steel (JCS10) and aluminium (JCS20 & JCS30), all models incorporate a spring assisted return, wear coated piston. The pumping mechanism rotates through 360° providing maximum versatility in any application. With the removable operating handle measuring only 240 mm in length, these compact lifting jacks will fit in any toolbox.
Capacities from 10 to 30 tonnes
Stroke lengths from 35 to 45 mm
Lightweight and compact
Spring assisted piston retraction
360 degree positional pumping mechanism
Internal safety overload valve
Nitrocarburised piston rod
Sealed hydraulic system
| Model Number | Capacity tonnes | Body construction | Stroke mm | Weight kg |
|---|---|---|---|---|
| JCS10 | 10 | Steel | 35 | 4.5 |
| JCS20 | 20 | Aluminium | 41 | 5.5 |
| JCS30 | 30 | Aluminium | 45 | 8.0 |

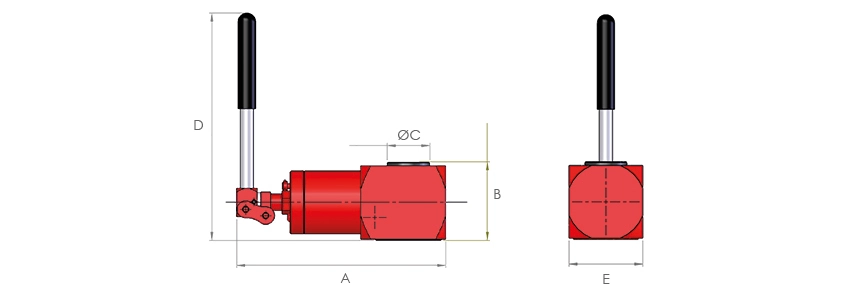

| Model Number | Dimensions in mm | ||||
|---|---|---|---|---|---|
| A | B | C | D | E | |
| JCS10 | 240 | 76 | 38 | 266 | 70 |
| JCS20 | 257 | 102 | 51 | 281 | 102 |
| JCS30 | 281 | 112 | 60 | 285 | 125 |
