MS Range
Description
Hi-Force high quality metric size heavy duty sockets are designed and manufactured for use with all Hi-Force bolting products, including hydraulic torque wrenches and impact wrenches. The MS range of metric impact sockets offers 56 models, with square drives from ¾” to 2 ½” and across flat sizes up to 145 mm. Long length, bi-hexagonal and special sockets are available on request.
- Square drives from ¾” to 2 ½”
- Across flat sizes up to 145 mm
- Supplied complete with retaining ring and pin

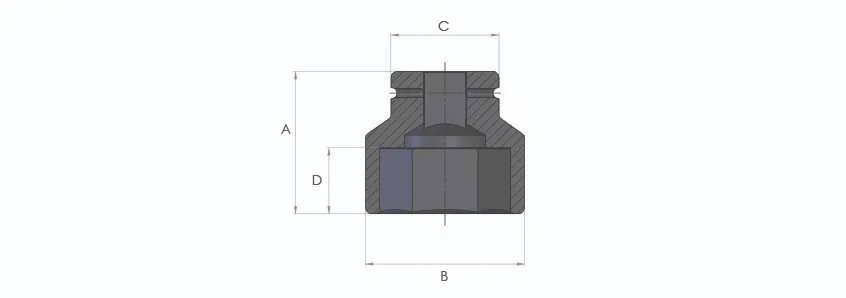

| Model Number | Square Drive | Nut AF mm | Dimensions in mm | |||
|---|---|---|---|---|---|---|
| A | B | C | D | |||
| MS2-24 | 3/4″ | 24 | 50 | 39 | 44 | 16 |
| MS2-27 | 3/4″ | 27 | 54 | 43 | 44 | 19 |
| MS2-30 | 3/4″ | 30 | 54 | 47 | 44 | 21 |
| MS2-32 | 3/4″ | 32 | 54 | 49 | 44 | 20 |
| MS2-36 | 3/4″ | 36 | 54 | 54 | 44 | 23 |
| MS2-41 | 3/4″ | 41 | 58 | 60 | 44 | 27 |
| MS2-46 | 3/4″ | 46 | 63 | 67 | 44 | 30 |
| MS2-50 | 3/4″ | 50 | 72 | 71 | 54 | 32 |
| MS2-55 | 3/4″ | 55 | 74 | 77 | 54 | 35 |
| MS2-60 | 3/4″ | 60 | 75 | 84 | 54 | 37 |
| MS9-24 | 1″ | 24 | 60 | 42 | 54 | 18 |
| MS9-27 | 1″ | 27 | 60 | 46 | 54 | 19 |
| MS9-30 | 1″ | 30 | 62 | 50 | 54 | 21 |
| MS9-32 | 1″ | 32 | 62 | 52 | 54 | 22 |
| MS9-36 | 1″ | 36 | 67 | 57 | 54 | 25 |
| MS9-41 | 1″ | 41 | 70 | 63 | 54 | 27 |
| MS9-46 | 1″ | 46 | 76 | 70 | 54 | 30 |
| MS9-50 | 1″ | 50 | 80 | 75 | 54 | 35 |
| MS9-55 | 1″ | 55 | 84 | 81 | 54 | 35 |
| MS9-60 | 1″ | 60 | 87 | 87 | 54 | 42 |
| MS9-65 | 1″ | 65 | 90 | 93 | 54 | 42 |
| MS9-70 | 1″ | 70 | 96 | 100 | 54 | 42 |
| MS9-75 | 1″ | 75 | 98 | 106 | 86 | 45 |
| MS9-80 | 1″ | 80 | 100 | 112 | 86 | 48 |
| MS9-85 | 1″ | 85 | 105 | 118 | 86 | 52 |
| MS9-90 | 1″ | 90 | 105 | 125 | 86 | 52 |
| MS9-95 | 1″ | 95 | 115 | 131 | 86 | 52 |
| MS9-100 | 1″ | 100 | 115 | 137 | 86 | 58 |
| MS5-36 | 1 1/2″ | 36 | 78 | 64 | 86 | 24 |
| MS5-41 | 1 1/2″ | 41 | 80 | 70 | 86 | 28 |
| MS5-46 | 1 1/2″ | 46 | 84 | 76 | 86 | 30 |
| MS5-50 | 1 1/2″ | 50 | 87 | 81 | 86 | 32 |
| MS5-55 | 1 1/2″ | 55 | 90 | 87 | 86 | 37 |
| MS5-60 | 1 1/2″ | 60 | 95 | 94 | 86 | 39 |
| MS5-65 | 1 1/2″ | 65 | 100 | 100 | 86 | 42 |
| MS5-70 | 1 1/2″ | 70 | 105 | 106 | 86 | 46 |
| MS5-75 | 1 1/2″ | 75 | 108 | 112 | 86 | 49 |
| MS5-80 | 1 1/2″ | 80 | 115 | 119 | 86 | 53 |
| MS5-85 | 1 1/2″ | 85 | 118 | 125 | 86 | 56 |
| MS5-90 | 1 1/2″ | 90 | 123 | 131 | 86 | 59 |
| MS5-95 | 1 1/2″ | 95 | 123 | 137 | 95 | 61 |
| MS5-100 | 1 1/2″ | 100 | 130 | 144 | 95 | 65 |
| MS5-105 | 1 1/2″ | 105 | 130 | 154 | 95 | 68 |
| MS5-110 | 1 1/2″ | 110 | 135 | 157 | 95 | 72 |
| MS5-115 | 1 1/2″ | 115 | 140 | 163 | 95 | 77 |
| MS5-130 | 1 1/2″ | 130 | 145 | 184 | 127 | 80 |
| MS6-80 | 2 1/2″ | 80 | 140 | 124 | 127 | |
| MS6-85 | 2 1/2″ | 85 | 140 | 130 | 127 | 51 |
| MS6-90 | 2 1/2″ | 90 | 145 | 136 | 127 | 54 |
| MS6-95 | 2 1/2″ | 95 | 145 | 143 | 127 | 54 |
| MS6-100 | 2 1/2″ | 100 | 150 | 148 | 127 | 58 |
| MS6-105 | 2 1/2″ | 105 | 155 | 155 | 127 | 58 |
| MS6-110 | 2 1/2″ | 110 | 160 | 161 | 127 | 60 |
| MS6-115 | 2 1/2″ | 115 | 165 | 167 | 127 | 62 |
| MS6-130 | 2 1/2″ | 130 | 175 | 187 | 152 | 72 |
| MS6-145 | 2 1/2″ | 145 | 185 | 207 | 152 | 83 |
