HTW Range
Description
i-Force HTW industrial manual torque wrenches offer output torque capacities ranging from 300 to 2000 Nm (200 to 1500 lbf.ft) with repeatable accuracy of +/- 4% and a choice of ¾” and 1” square drives. All HTW break-back type models provide a large break angle, to prevent the possibility of over torqueing. The cam control of the internal mechanism will ensure a controlled “break” once the required preset torque is achieved, which reduces the risk of the operator losing balance. The wrench automatically resets when hand pressure is released.
All models are designed and manufactured to meet or exceed the highest demands of industry and are marked with a unique serial number and supplied with a calibration certificate. All HTW manual torque wrenches incorporate a push-through square drive which allows for torque control in both clockwise and anti-clockwise directions.
- Torque capacities from 300 to 2000 Nm
- Repeatable accuracy +/- 4 %
- Dual scale Nm & lbf.ft.
- Heavy duty ratchet head
- Push-through square drive
- Supplied with calibration certificate
- Complete with carrying & storage case
| Model No. | Square Drive | Torque Range | Overall length mm | Ratchet Head dia mm | Weight kg | |
|---|---|---|---|---|---|---|
| Nm | lbf.ft | |||||
| HTW1000B | 3/4″ | 300 – 1000 | 200 – 750 | 1554 | 69 | 7.4 |
| HTW1500B | 3/4″ | 700 – 1500 | 500 – 1000 | 1869 | 69 | 9.6 |
| HTW1800B | 1″ | 700 – 1500 | 500 – 1000 | 1869 | 69 | 9.6 |
| HTW2000B | 1″ | 900 – 2000 | 700 – 1500 | 1940 | 69 | 12.8 |

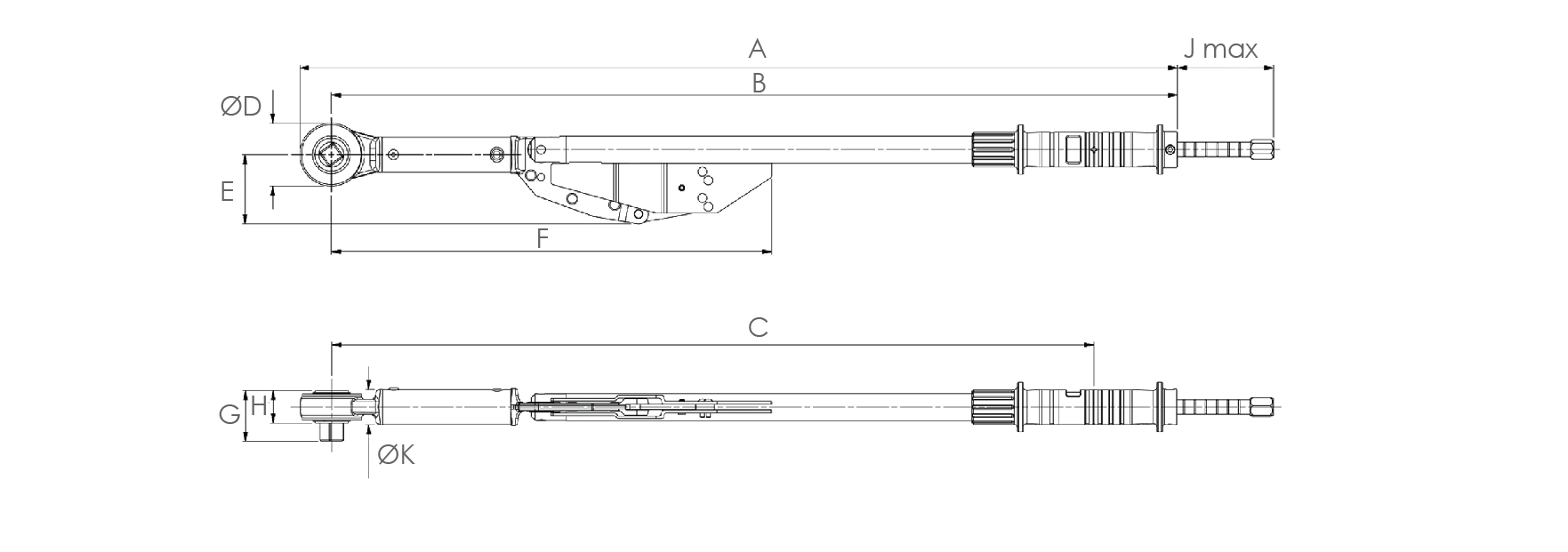

| Model Number | Dimensions in mm | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | ØD | E | F | G | H | J max | ØK | |
| HTW1000B | 1449 | 1415 | 1324 | 69 | 75 | 974 | 55 | 35 | 105 | 38 |
| HTW1500B | 1764 | 1730 | 1635 | 69 | 75 | 1379 | 55 | 35 | 105 | 38 |
| HTW1800B | 1764 | 1730 | 1635 | 69 | 75 | 1379 | 63 | 35 | 105 | 38 |
| HTW2000B | 1855 | 1820 | 1773 | 69 | 75 | 1379 | 63 | 35 | 85 | 38 |
