PB Range
Description
The Hi-Force hydraulic pipe bender is designed to bend various sizes and thicknesses of JIS standardised conduit pipes ranging from 16 to 82 mm (½” to 3”). Made of aluminium, the bending frame and pivot shoes are lightweight so that it can be easily carried on and off site, and can be operated by any manual or powered pump up to 700 bar.
- Capacity 10 tonnes
- Bends up to 90 degrees
- Working pressure 700 bar
| Model Number | Max Capacity tonnes | Stroke mm | Oil Capacity litres | Weight kg | Applicable Range / included Bending Shoes |
|---|---|---|---|---|---|
| PB10B | 10 | 250 | 0.4 | 62.5 | Thick steel conduit from 16 mm (1/2″ ) to 82 mm (3″) |
Note: Weight for PB10B includes metal storage box but excludes pump and hose
BENDING SHOES
| Model Number | Pipe Size Inch | Pipe Outer Dia mm | Pipe Inner Dia mm | Bending Radius mm |
|---|---|---|---|---|
| BS-B16 | 1/2″ | 21.0 | 16.4 | 75 |
| BS-B22 | 3/4″ | 26.5 | 21.9 | 90 |
| BS-B28 | 1″ | 33.3 | 28.3 | 130 |
| BS-B36 | 1 1/4″ | 41.9 | 36.9 | 195 |
| BS-B42 | 1 1/2″ | 47.8 | 42.8 | 230 |
| BS-B54 | 2″ | 59.6 | 54.0 | 270 |
| BS-B70 | 2 1/2″ | 75.2 | 69.6 | 450 |
| BS-B82 | 3″ | 87.9 | 82.3 | 500 |

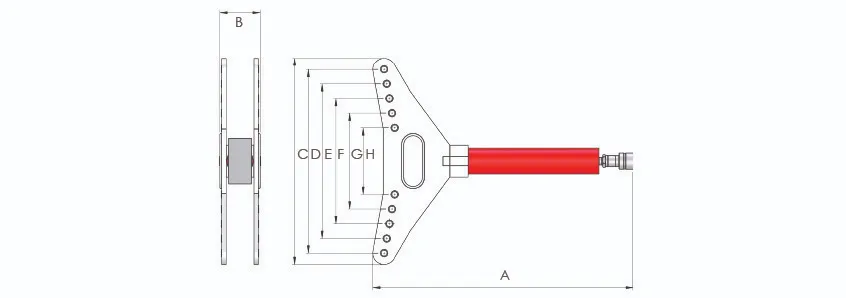

| Model Number | Dimensions in mm | |||||||
|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | H | |
| PB10B | 720 | 147 | 755 | 695 | 595 | 495 | 395 | 295 |
