BC Range
Description
The BC range of battery powered crimping tools consists of 4 models with a choice of ‘C’ jaw or parallel guide design that incorporates a 360° swivel head.
The range offers all the versatility of the manually operated CH and SC range but with the added speed and ease of use associated with a battery powered tool. All models are supplied with battery, battery charger, shoulder strap and tool box storage case.
- Fast self-contained battery powered
- Supplied complete with standard set of dies
- Lightweight and easy to operate

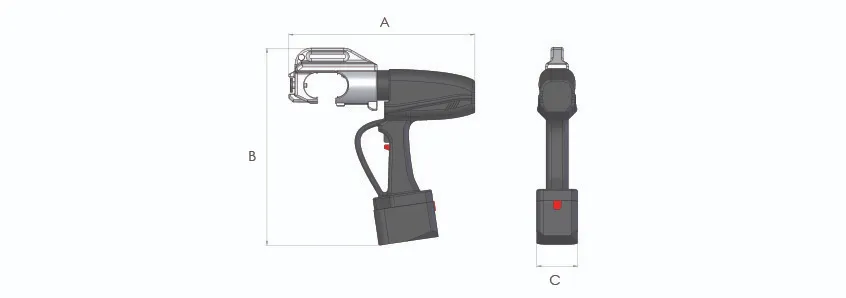

| Model Number | Output Tonnes | C-Jaw Opening | Applicable Range DIN mm2 | Standard Dies mm2 | Dimensions in mm | Weight kg | ||
|---|---|---|---|---|---|---|---|---|
| A | B | C | ||||||
| BC18X | 5 | not applicable | 10-185 | With die 10-16, 25-35, 50-70, 95-120, 150, 185 | 370 | 280 | 70 | 3.8 |
| BC30 | 10 | 30 mm | 35-400 | With die 35, 50, 70, 95, 120, 150, 185, 240, 300, 400 | 400 | 280 | 70 | 5.9 |
| BC40 | 10 | 38 mm | 35-400 | With die 35, 50, 70, 95, 120, 150, 185, 240, 300, 400 | 430 | 270 | 70 | 7.2 |
| BC63 | 16 | not applicable | 35-630 | With die 35, 50, 70, 95, 120, 150, 185, 240, 300, 400, 500, 630 | 420 | 320 | 75 | 6.9 |
OPTIONAL DIE SETS
| Model Number | Description |
|---|---|
| CD10 | Optional die set 10 mm2, suitable for crimping tool BC30, BC40 & BC63 |
| CD16 | Optional die set 16 mm2, suitable for crimping tool BC30, BC40 & BC63 |
| CD25 | Optional die set 25 mm2, suitable for crimping tool BC30, BC40 & BC63 |
ACCESSORIES
| Model Number | Description |
|---|---|
| BP12 | Battery Pack 14.4V |
| CU12 | Charger 110V – 230V |
| MP110 | 110V power supply to operate unit directly from mains |
| MP220 | 220/230V power supply to operate unit directly from mains |
Note: Charger supplied separately
